Quad Lock® 360 Base - Flat Rectangle 2 Hole

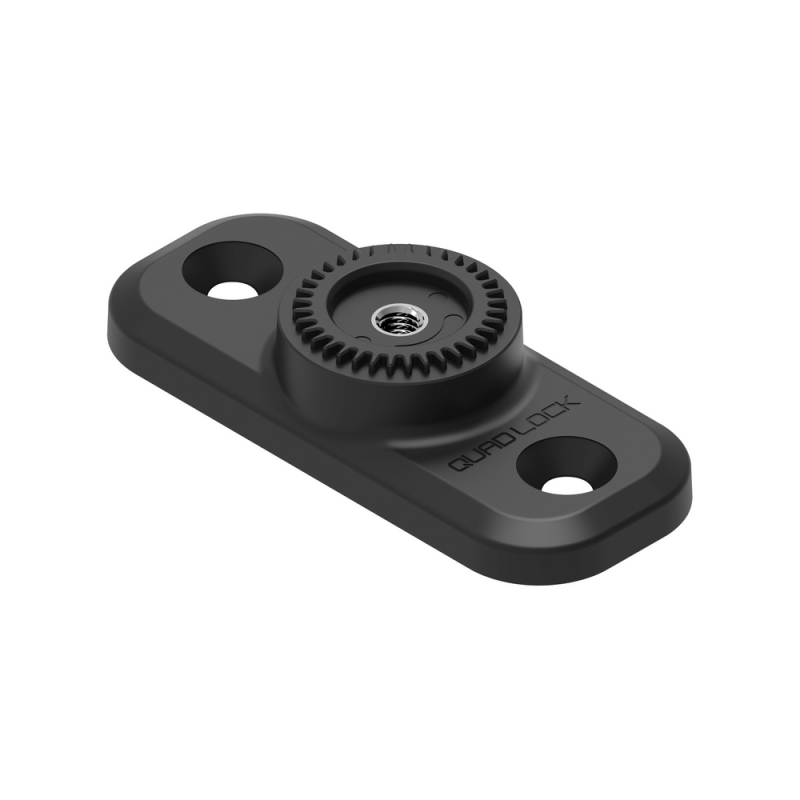

QUAD LOCK® 360™ RECTANGULAR 2-HOLE FLAT BASE

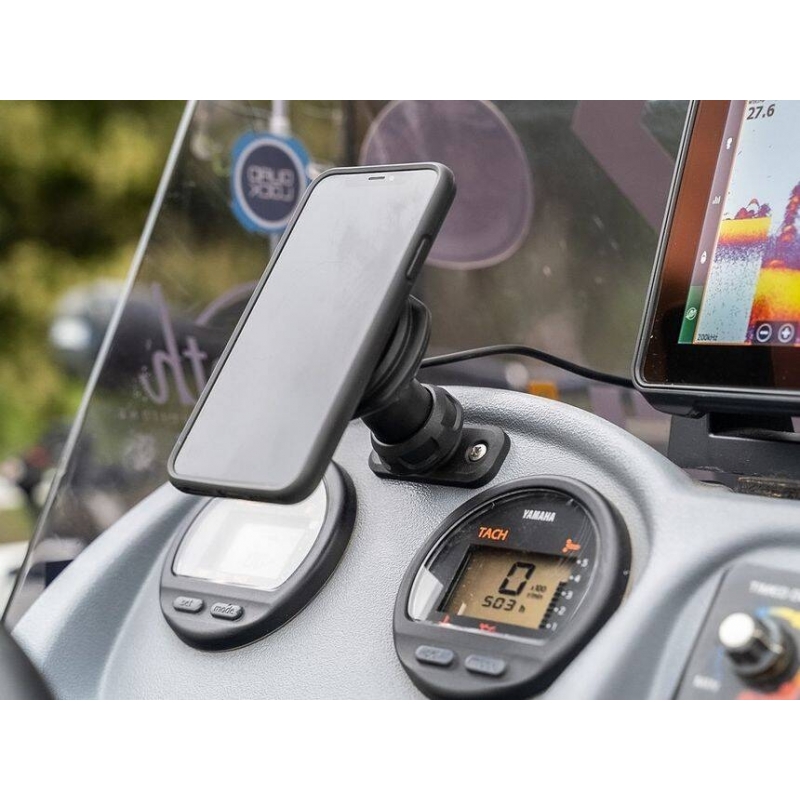

The Quad Lock® 360™ 2-Hole Flat Base is a slim yet incredibly robust mounting solution. With its narrow design (only 28 mm wide), it is perfect for installations on thin rails, frame elements, or dashboards where space is at a premium. Utilizing the AMPS standard ensures broad compatibility with professional mounting systems.

KEY FEATURES:

• Slim Profile: The 28 mm width allows for installation in tight spaces while providing a high level of connection stability.

• AMPS Standard: The 48.5 mm hole pitch complies with the universal industry standard, enabling seamless integration with a wide range of mounts and brackets.

• Mounting Versatility: The base can be fixed vertically, horizontally, or diagonally to suit the specific requirements of the surface.

• High Durability: Constructed from glass-filled nylon, it ensures longevity and resistance to harsh weather conditions and vibrations.

KIT CONTENTS:

• 1x Quad Lock® 360™ Rectangular 2-Hole Flat Base.

• 1x 10mm Spacer.

• 1x M5 x 30mm Screw (for connecting to head/arm).

• 1x M5 x 45mm Screw (for connecting to head/arm).

• Note: Surface mounting screws are not included.

TECHNICAL SPECIFICATIONS:

• Product Code: QLP-360-F2H.

• Dimensions: 68.5 mm x 28 mm x 14 mm.

• AMPS Hole Pitch: 48.5 mm (1.9").

• Compatible Screws: 10G or M5 countersunk screws.

• Material: High-strength glass-filled nylon.

• Compatibility: All Quad Lock 360™ arms and heads.
