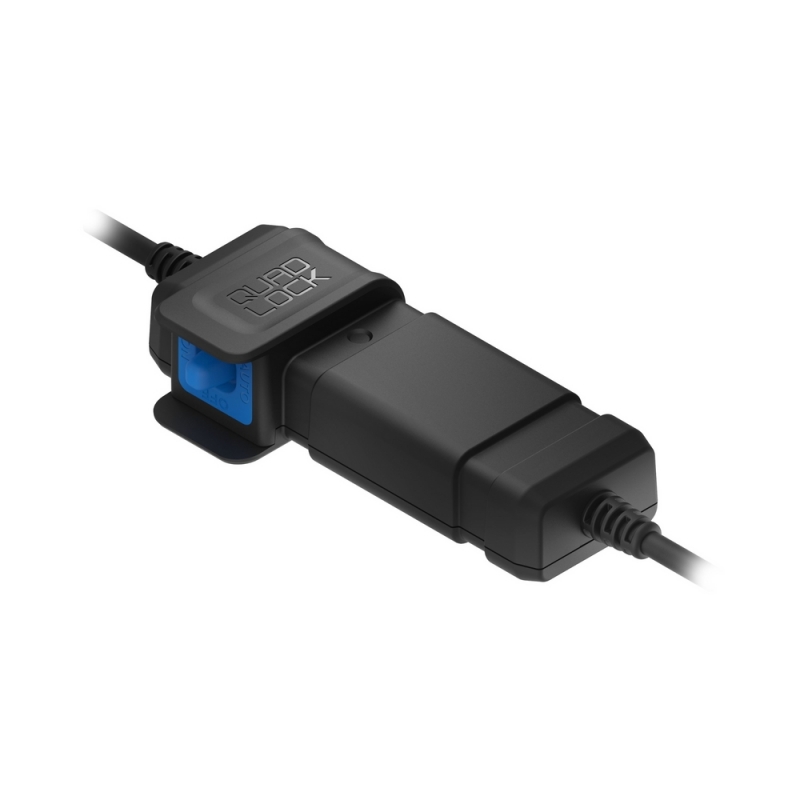

Quad Lock® Waterproof 12V to USB Smart Adaptor

QUAD LOCK® 12V TO USB SMART ADAPTOR

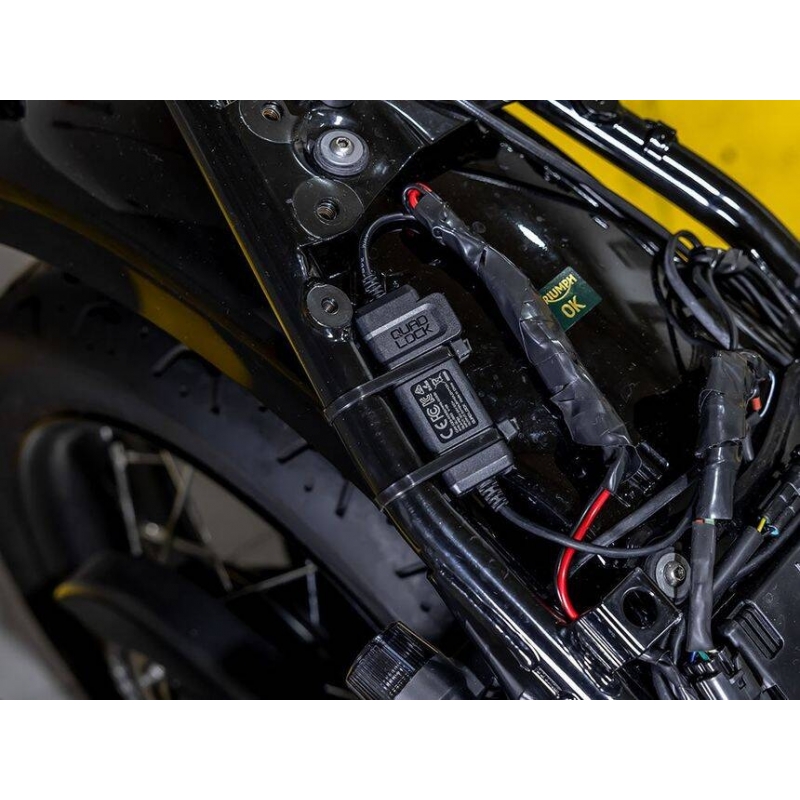

The Quad Lock® 12V to USB Smart Adaptor is the ultimate power solution for integrating a Wireless Charging Head into your motorcycle, boat, or caravan. Featuring a sophisticated voltage-sensing "Auto" mode, this adaptor ensures your device only draws power when the engine is running, effectively protecting your vehicle's battery from unwanted drain.

KEY FEATURES:

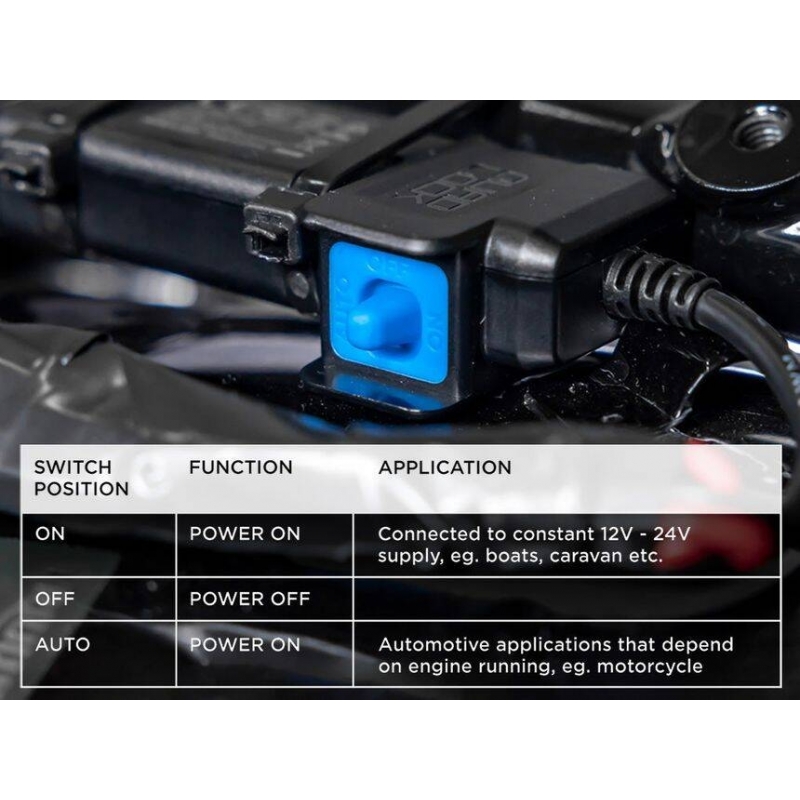

• Three Working Modes: Easily toggle between AUTO (powers on at 13.5V, off at 12.5V), ON (constant power for house batteries), and OFF for complete isolation.

• Smart Battery Preservation: The Auto mode is specifically tuned for starter batteries, ensuring you never return to a flat battery after leaving your phone mounted.

• Robust Circuit Protection: Includes an integrated 3A fuse and reverse polarity protection to safeguard your vehicle's electrical system against incorrect terminal connection.

• All-Weather Reliability: Rated IP66 for the main adaptor and cables, with an IP64 sealed USB cover, this unit is built to withstand heavy seas, rain, and mud.

KIT CONTENTS:

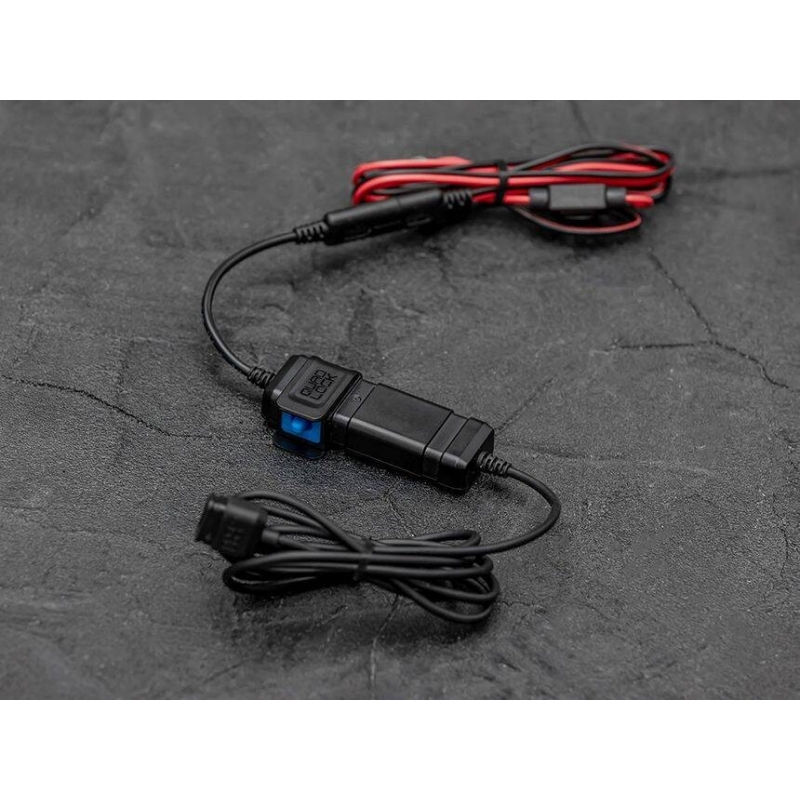

• 1x Quad Lock® 12V to USB Smart Adaptor (USB-A female output).

• 1x 1.5m SAE to Ring Terminal Cable with 3A inline fuse.

• 1x 20cm SAE to USB-A Female Cable.

• Cable ties for neat installation.

TECHNICAL SPECIFICATIONS:

• Product Code: QLA-PBX.

• Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A).

• Input: 12V - 24V DC.

• Waterproof Rating: IP66 Adaptor/Cables, IP64 USB seal.

• Materials: Polycarbonate housing, TPU switch, brass terminals.

• Compatibility: Ideal for Motorcycles, Boats, Caravans, and ATVs.
