Quad Lock® Motorcycle Clutch Mount

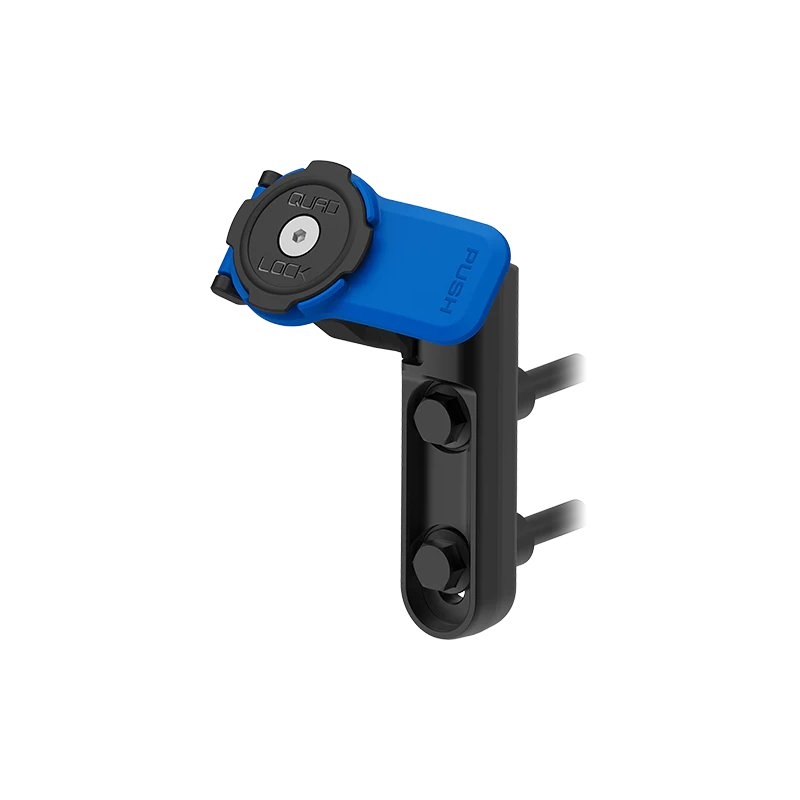

QUAD LOCK® BRAKE / CLUTCH PERCH MOUNT

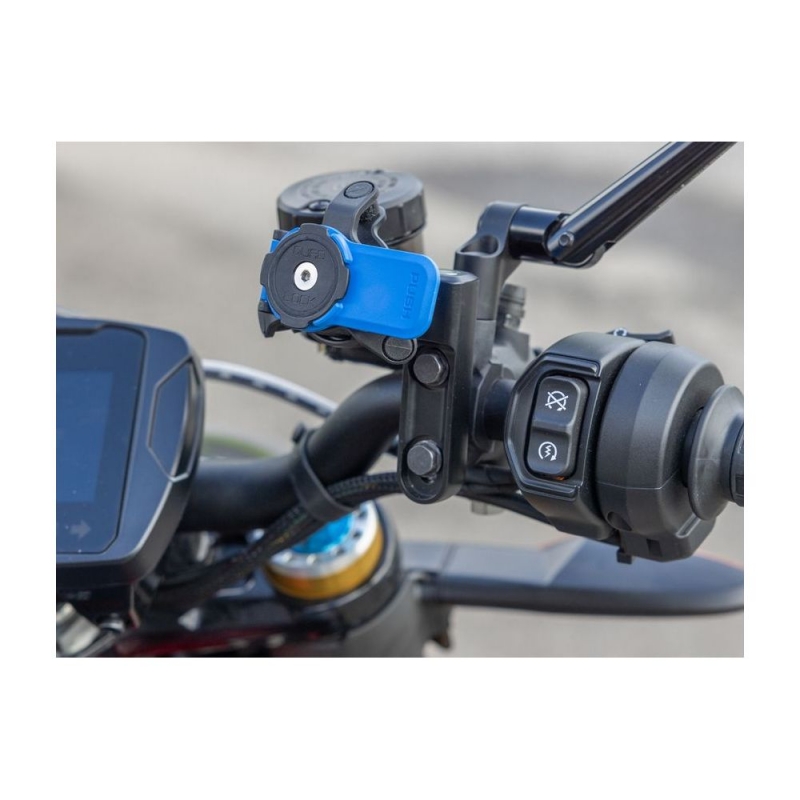

The Quad Lock® Brake/Clutch Perch Mount is the premium choice for riders who prefer a clean, integrated look for their smartphone mounting system. By utilizing the existing mounting points of your motorcycle’s clutch or brake perch, this mount stays close to your controls and out of the way of other accessories. Engineered with high-quality materials, it provides a rock-solid platform for your device in any riding condition.

KEY FEATURES:

• Seamless Integration: The anodized die-cast aluminum base offers a minimalist design that complements the aesthetic of modern motorcycles, appearing like a factory-fitted part.

• Ultimate Security: Features our patented dual-stage lock to keep your smartphone mechanically fastened to the bike. High-tensile steel bolts with micro-encapsulated thread locker ensure the mount remains secure over time.

• Flexible Orientation: Can be mounted on either the left or right side of the handlebar. The inward-offset head ensures the phone stays clear of mirrors and hand controls.

• Perfect Viewing Angle: The mount head can be rotated 180 degrees and tilted to find the exact position needed for clear visibility and safe operation.

KIT CONTENTS:

• 1x Quad Lock® Brake/Clutch Perch Mount.

• 2x M6 x 45 serrated flange bolts (with thread locker).

• 2x UNC 1/4-20 x 1.75 serrated flange bolts (with thread locker).

• 2x Spacers.

• 1x Hex (Allen) Key.

TECHNICAL SPECIFICATIONS:

• Product Code: QLM-CLH.

• Construction: Glass-filled nylon, anodized die-cast aluminum, stainless steel hardware.

• Hole Pitch Range: 32mm – 38mm (1 1/4" – 1 1/2").

• Compatibility: Works with all Quad Lock® cases and Universal Adaptors.

• Important: To protect your smartphone's OIS camera system from engine frequencies, Quad Lock strongly recommends adding the optional Vibration Dampener.
