Kriega US Hook Strap Set

Kriega US Hook Strap Set – Comprehensive Mounting Kit

The Kriega US Hook Strap Set (KAMBS) is a high-end mounting solution designed for the secure and stable attachment of US-Drypacks (US-10, US-20, US-30) and OS-Adventure Packs. Utilizing a proprietary alloy hook system, it eliminates the need for unreliable bungee cords or loose straps, offering the most solid luggage-to-bike connection available on the market.

Key Features and Benefits:

• Subframe Mounting: Even if your bike has seat-pad loops, Kriega recommends mounting directly to the subframe. This provides a much stronger and more secure anchor point than the seat alone.

• 6061-T6 Alloy Hooks: Custom-designed aircraft-grade aluminum hooks ensure a rock-solid connection and are resistant to fatigue or bending under heavy loads.

• Clean Look System: When the bag is removed, no loose straps are left trailing on the bike – only the discreet subframe loops remain tucked under the seat.

• Multi-Position Fit: The design allows the bag to be mounted inline or across the motorcycle seat, providing flexibility based on the bike's layout and rider preference.

• ITW Airloc Buckles: Heavy-duty Acetal buckles provide a positive "click" and reliable quick-release performance.

Installation and Safety Guidelines:

1. Locate Points: Remove the seat and find high-strength metal parts of the subframe. Some bikes may require small notches in the plastic inner tray to access the frame.

2. Secure Loops: Fasten the 4x 20mm loops to the frame. Always web the strap back through the adjuster to lock it firmly in place after the final adjustment.

3. Mount Bag: Hook the straps onto the loops, click the buckles shut, and cinch down to compress the bag onto the bike.

4. Strap Management: Always use two strap keepers per webbing to manage loose ends. Ensure all quick-release buckles are correctly clicked into place before riding.

Technical Specifications:

• Strap Length: Standard 600 mm.

• Hook Material: 6061-T6 Aircraft-grade alloy.

• Buckle Material: Acetal ITW Airloc.

• Loop Width: 20 mm.

• Product Code: KAMBS.

• Warranty: 10 years.

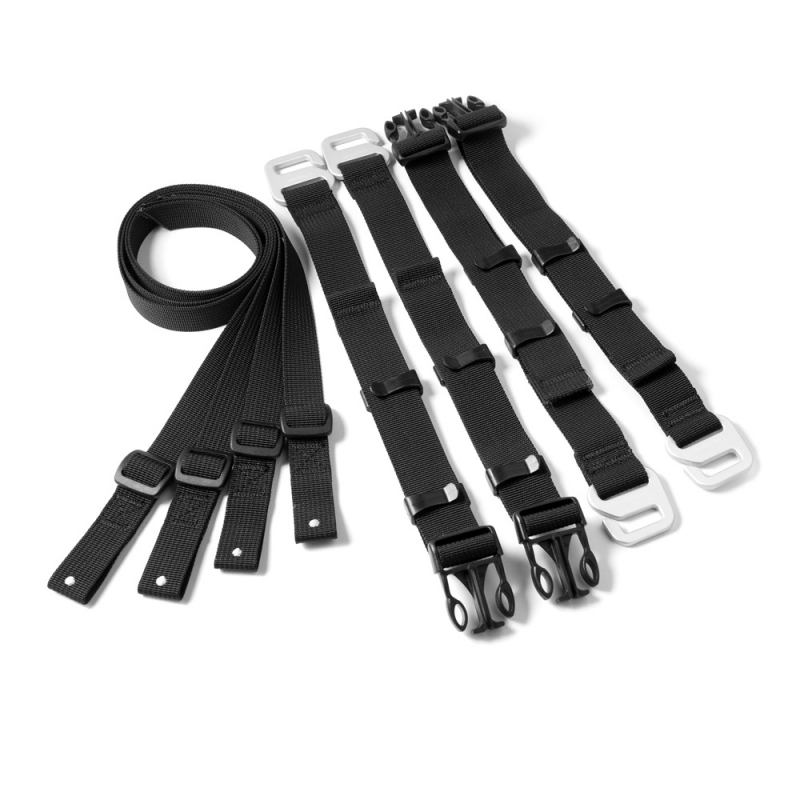

Kit Contents:

• 4x Hook straps with alloy hooks and buckles.

• 4x 20mm Subframe loops.
